MC10E116 - QUINT DIFFERENTIAL LINE RECEIVER

Features

  • clamp circuitry to cause a defined state if both the inverting and non-inverting inputs are left open; in this case the Q output goes LOW, while the Q output goes HIGH. This feature makes the device ideal for twisted pair.

📥 Download Datasheet

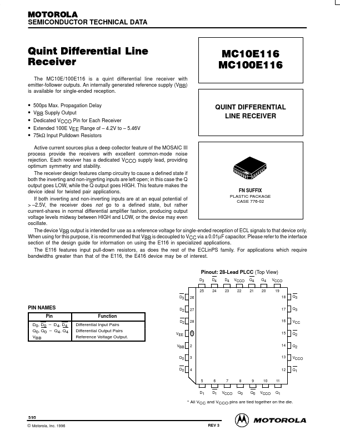

Datasheet preview – MC10E116

📁 Similar Datasheet

  • MC10E116 - 5V ECL Quint Differential Line Receiver (ON Semiconductor)
  • MC10E111 - 1:9 DIFFERENTIAL CLOCK DRIVER (ON Semiconductor)
  • MC10E112 - QUAD DRIVER (ON Semiconductor)
  • MC10E101 - QUAD 4-INPUT OR/NOR GATE (ON Semiconductor)
  • MC10E104 - QUINT 2-INPUT AND/NAND GATE (ON Semiconductor)
  • MC10E107 - QUINT 2-INPUT XOR/XNOR GATE (ON Semiconductor)
  • MC10E122 - 9-BIT BUFFER (ON Semiconductor)
  • MC10E131 - 4-BIT D FLIP-FLOP (ON Semiconductor)
  • MC10E136 - 6-BIT UNIVERSAL UP/DOWN COUNTER (ON Semiconductor)
  • MC10E137 - 5V?ECL 8?Bit Ripple Counter (ON Semiconductor)
Other Datasheets by Motorola

Full PDF Text Transcription

Click to expand full text
MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quint Differential Line Receiver MC10E116 MC100E116 The MC10E/100E116 is a quint differential line receiver with emitter-follower outputs. An internally generated reference supply (VBB) is available for single-ended reception. • 500ps Max. Propagation Delay • VBB Supply Output • Dedicated VCCO Pin for Each Receiver • Extended 100E VEE Range of – 4.2V to – 5.46V • 75kΩ Input Pulldown Resistors QUINT DIFFERENTIAL LINE RECEIVER Active current sources plus a deep collector feature of the MOSAIC III process provide the receivers with excellent common-mode noise rejection. Each receiver has a dedicated VCCO supply lead, providing optimum symmetry and stability.
