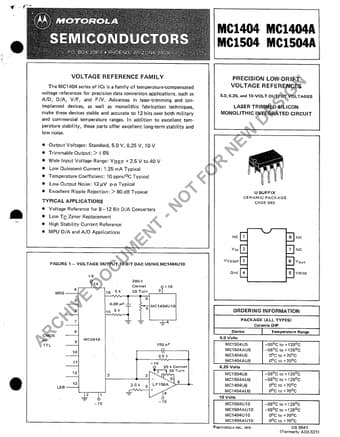

MC1404 MC1404A MC1504 MC1504A
VOLTAGE
REFERENCE
FAMILY
The MC1404 series of ICS is a family of temperature-compensated voltage references for precision data conversion applications, such as A/D, D/A, V/F, and F/V. Advances in lase~trimming and ionimplanted devices, as well as monolithic fabrication techniques, make these devices stable and accurate to 12 bits over both military and commercial temperature ranges. In addition to excellent temperature stability, these parts offer excellent long-term stability and low noise.
. Output Voltages: Standard, 5.0 V, 6.25 V, 10 V
. Trimmable Output: > t 6%
m—
q
. Wide Input Voltage Range: VREF + 2.5 V to40 V
. Low Quiescent Current: 1.25 mA Typical @ Temperature Coefficient: 10 ppm/°C Typical @ Low Output Noise: 12 #V p-p Typical .
