MC33160 Datasheet - Motorola

MICROPROCESSOR VOLTAGE REGULATOR/ SUPERVISORY CIRCUIT

MC33160 Features

* include a chip disable input for low standby current, and internal thermal shutdown for over temperature protection. These devices are contained in a 16 pin dual

* in

* line heat tab plastic package for improved thermal conduction.

* 5.0 V Regulator Output Current in Excess of 10

MC33160 General Description

Pin 1 2 3 4, 5, 12, 13 6 7 8 9 10 11 14 15 16 Function Comparator Inverting Input Comparator Noninverting Input N.C. Gnd Comparator Output Reset Power Warning Power Sense Hysteresis Adjust Regulator Output VCC Chip Disable Vref Description This is the Uncommitted Comparator Inverting input. It is ty.

MC33160 Datasheet (188.79 KB)

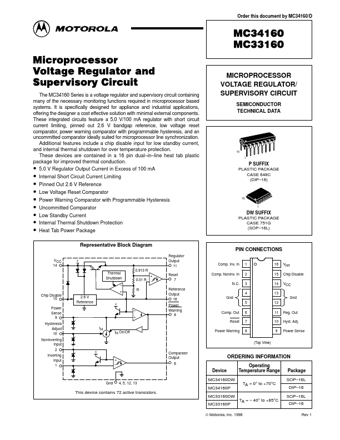

MC33160 Datasheet Preview — Preview of MC33160 PDF

Datasheet Details

Part number:

MC33160

Manufacturer:

Motorola

File Size:

188.79 KB

Description:

Microprocessor voltage regulator/ supervisory circuit.
Order this document by MC34160/D Microprocessor Voltage Regulator and Supervisory Circuit The MC34160 Series is a voltage regulator and supervisory c.
