MC33198 Datasheet - Motorola

MC33198 Automotive High Side TMOS Driver

Introduction The MC33198D is a high side TMOS driver, dedicated for automotive applications. It is used in conjunction with an external power MOSFET for high side drive applications. The device can drive and protect a large variety of MOSFET. The device has CMOS compatible input control, charge pump.
MOTOROLA Freescale Semiconductor, Inc. SEMICONDUCTOR MC33198 HIGH SIDE TMOS DRIVER SILICON MONOLITHIC INTEGRATED CIRCUIT Automotive High Side TMOS Driver The MC33198D is a high side TMOS driver, dedicated for automotive applications. It is used in conjunction with an external power MOSFET for high side drive applications. The device can drive and protect a large variety of MOSFET. The device has CMOS compatible input control, charge pump to drive the MOSFET gate, fault detection circuitry ba.

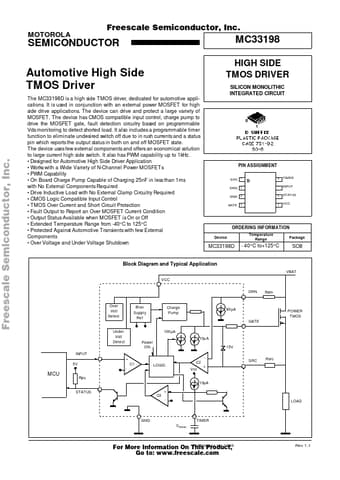

MC33198 Datasheet (296.39 KB)

Preview of MC33198 PDF

Datasheet Details

Part number:

MC33198

Manufacturer:

Motorola

File Size:

296.39 KB

Description:

Automotive high side tmos driver.
