MC54HC244A Datasheet - Motorola

MC54HC244A Octal 3-State Noninverting Buffer/Line Driver/Line Receiver

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Octal 3-State Noninverting Buffer/Line Driver/ Line Receiver High Performance Silicon Gate CMOS The MC54/74HC244A is identical in pinout to the LS244. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. This octal noninverting buffer/line driver/line receiver is designed to be used with 3 state memory address drivers, clock drivers, and other bus oriente.

MC54HC244A_Motorola.pdf

Preview of MC54HC244A PDF

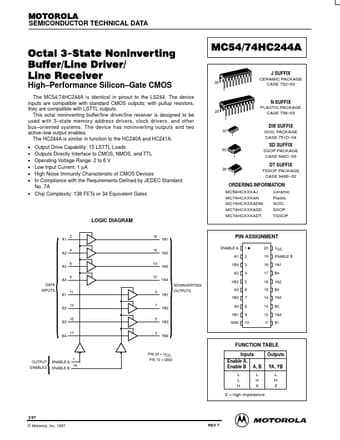

MC54HC244A Datasheet Preview Page 2 MC54HC244A Datasheet Preview Page 3

Datasheet Details

Part number:

MC54HC244A

Manufacturer:

Motorola

File Size:

185.68 KB

Description:

Octal 3-state noninverting buffer/line driver/line receiver.
