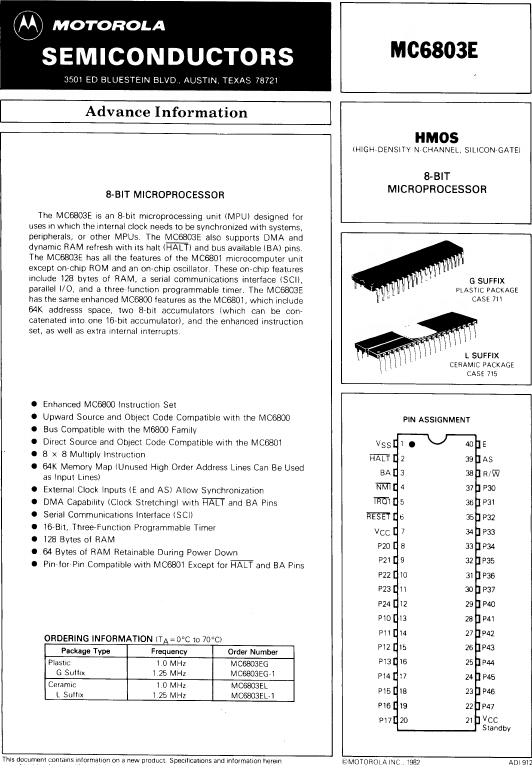

MC6803E
features of the MC6801 microputer unit except on-chip ROM and an on-chip oscillator. These on-chip features include 128 bytes of RAM, a serial munications interface (SCI), parallel |/O, and a three-function programmable timer. The MC6803E has the same enhanced MC6800 features as the MC6801, which include 64K addresss space, two 8-bit accumulators (which can be concatenated into one 16-bit accumulator), and the enhanced instruction set, as well as extra internal interrupts.
Enhanced MC6800 Instruction Set Upward Source and Object Code patible with the MC6800 Bus patible with the M6800 Family Direct Source and Object Code patible with the MC6801 8 x 8 Multiply Instruction 64K Memory Map (Unused High Order Address Lines Can Be Used as Input Lines) External Clock Inputs (E and AS) Allow Synchronization DMA Capability (Clock Stretching) with HALT and BA Pins Serial munications Interface (SCI) 16-Bit, Three-Function Programmable Timer 128 Bytes of RAM 64 Bytes of RAM Retainable During Power...
