MC68HC04P3 8-BIT HCMOS MICROCOMPUTER

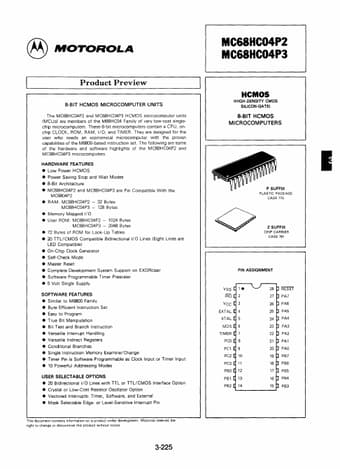

® MOTOROI.A Product Preview 8-BIT HCMOS MICROCOMPUTER UNITS The MC68HC04P2 and MC68HC04P3 HCMOS microcomputer units (MCUs) are members of the M68HC04 Family of very low-cost singlechip microcomputers. These 8-bit microcomputers contain a CPU, onchip CLOCK, ROM, RAM, I/O, and TIMER. They are designed for the user who needs an economical microcomputer with the proven capabilities of the M6800-based instruction set. The following are some of the hardware and software highlights of the MC68HC04P2 an.

MC68HC04P3 Features

* Low Power HCMOS

* Power Saving Stop and Wait Modes

* 8-Bit Architecture

* MC68HC04P2 and MC68HC04P3 are Pin Compatible With the MC6804P2

* RAM: MC68HC04P2 - 32 Bytes MC68HC04P3 - 128 Bytes

* Memory Mapped I/O

* User ROM: MC68HC04P2 - 1024 Byt

MC68HC04P2-Motorola.pdf

MC68HC04P3 Datasheet Preview — This datasheet PDF includes multiple part numbers: MC68HC04P3, MC68HC04P2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MC68HC04P3, MC68HC04P2

Manufacturer:

Motorola

File Size:

64.17 KB

Description:

8-bit hcmos microcomputer.

Note:

This datasheet PDF includes multiple part numbers: MC68HC04P3, MC68HC04P2.
Please refer to the document for exact specifications by model.
