MC74AC540

OCTAL BUFFER/LINE DRIVER

MC74AC540 Features

* AMBAR PROTRUSION. ALLOWABLE DAMBAR PROTRUSION SHALL BE 0.13 (0.005) TOTAL IN EXCESS OF D DIMENSION AT MAXIMUM MATERIAL CONDITION. MILLIMETERS INCHES DIM MIN MAX MIN MAX A 12.65 12.95 0.499 0.510 B 7.40 7.60 0.2

MC74AC540 Datasheet (234.48 KB)

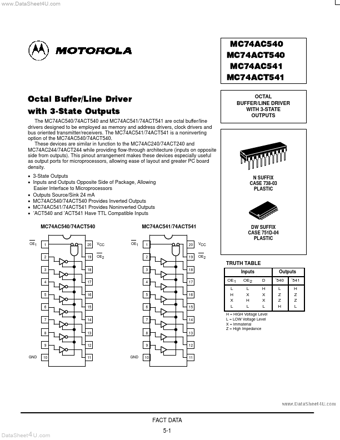

Preview of MC74AC540 PDF

Datasheet Details

Part number:

MC74AC540

Manufacturer:

Motorola

File Size:

234.48 KB

Description:

Octal buffer/line driver.
www.DataSheet4U.com MC74AC540 MC74ACT540 MC74AC541 MC74ACT541 Octal Buffer/Line Driver with 3ĆState Outputs OCTAL BUFFER/LINE DRIVER WITH 3-STATE O.
