MC74HC564A Datasheet - Motorola

Octal 3-State Inverting D Flip-Flop

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Octal 3-State Inverting D Flip-Flop High Performance Silicon Gate CMOS The MC74HC564A is identical in pinout to the LS564. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. This device is identical in function to the HC534A but has the flip flop inputs on the opposite side of the package from the outputs to facilitate PC board layout. Data meeting the setup ti.

MC74HC564A Datasheet (188.12 KB)

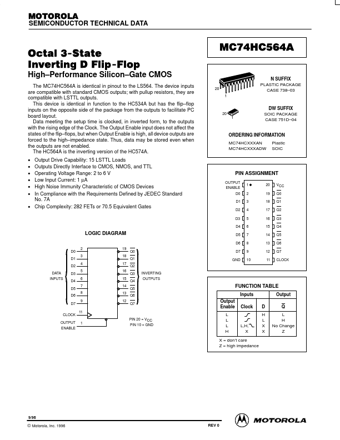

Preview of MC74HC564A PDF

Datasheet Details

Part number:

MC74HC564A

Manufacturer:

Motorola

File Size:

188.12 KB

Description:

Octal 3-state inverting d flip-flop.
