MCR22-3 Datasheet - Motorola

MCR22-3 Silicon Controlled Rectifiers

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MCR22-2/D Silicon Controlled Rectifiers . . . designed and tested for repetitive peak operation required for CD ignition, fuel ignitors, flash circuits, motor controls and low-power switching applications. 150 Amperes for 2 µs Safe Area High dv/dt Very Low Forward “On” Voltage at High Current Low-Cost TO-226AA (TO-92) MCR22Ć2 thru MCR22Ć8 SCRs 1.5 AMPERES RMS 50 thru 600 VOLTS G A K K G A .

MCR22-3_MotorolaInc.pdf

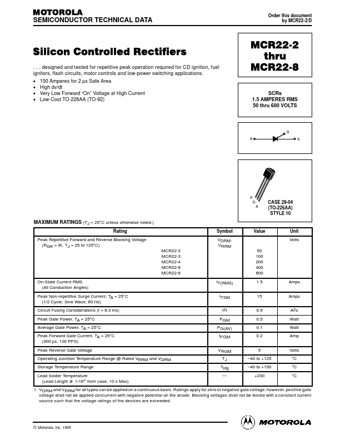

Preview of MCR22-3 PDF
MCR22-3 Datasheet Preview Page 2 MCR22-3 Datasheet Preview Page 3

Datasheet Details

Part number:

MCR22-3

Manufacturer:

Motorola

File Size:

101.63 KB

Description:

Silicon controlled rectifiers.
