MCT7812CD2T Datasheet - Motorola

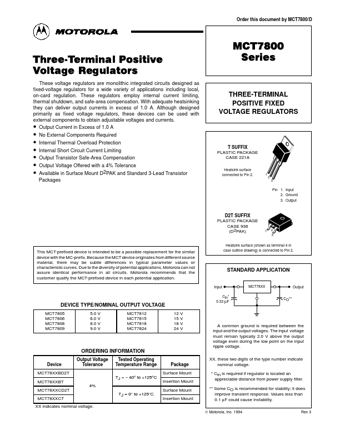

MCT7812CD2T THREE-TERMINAL POSITIVE FIXED VOLTAGE REGULATORS

Order this document by MCT7800/D ThreeĆTerminal Positive Voltage Regulators These voltage regulators are monolithic integrated circuits designed as fixed-voltage regulators for a wide variety of applications including local, on-card regulation. These regulators employ internal current limiting, thermal shutdown, and safe-area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as fixed voltage regulators, these devices can be .

MCT7812CD2T Features

* l supply more current under the same conditions. 2. Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into account separately. Pulse testing with low duty cycle is used. MCT7800 4 MOTOROLA MCT7800 ELECTRICAL CHARACTERISTICS
