MKP1V120 Datasheet - Motorola

MKP1V120 - SIDACs 0.9 AMPERES RMS 110 thru 280 VOLTS

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MKP1V120/D Sidac High Voltage Bilateral Triggers .

.

.

designed for direct interface with the ac power line.

Upon reaching the breakover voltage in each direction, the device switches from a blocking state to a low voltage on-state.

Conduction will continue like an SCR until the main terminal current drops below the holding current.

The plastic axial lead package provides high pulse current capability at low cost.

Glass passivation

MKP1V120_MotorolaInc.pdf

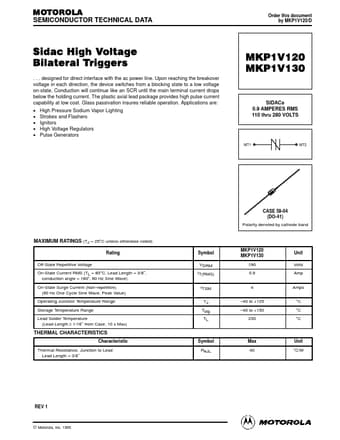

Preview of MKP1V120 PDF
MKP1V120 Datasheet Preview Page 2 MKP1V120 Datasheet Preview Page 3

Datasheet Details

Part number:

MKP1V120

Manufacturer:

Motorola

File Size:

85.01 KB

Description:

Sidacs 0.9 amperes rms 110 thru 280 volts.
