MMBD2000T1 - Switching Diode

MMBD2000T1 Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA ™ Order this document by MMBD1000LT1/D Switching Diode Part of the GreenLine™ Portfolio of devices with energ.

MMBD2000T1 Features

* Very Low Leakage (≤ 500 pA) promotes extended battery life by decreasing energy waste
* Offered in four Surface Mount package types

MMBD2000T1 Applications

* ESD Protection
* Reverse Polarity Protection
* Steering Logic
* Medium
* Speed Switching MMBD1000LT1 MMBD2000T1 MMBD3000T1 MMSD1000T1 Motorola Preferred Devices MMBD1000LT1 3 1 2 CASE 318-07, STYLE 8 SOT-23 (TO-236AB) 3 CATHODE 1 ANODE MAXIMUM RATINGS Rati

📥 Download Datasheet

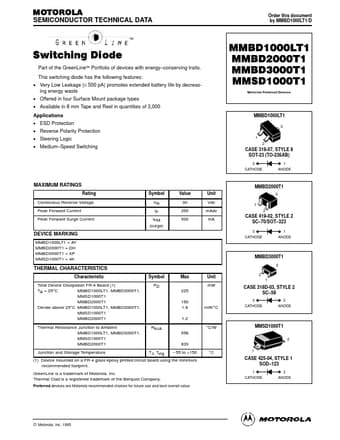

Preview of MMBD2000T1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMBD2000T1
Manufacturer
Motorola
File Size
171.52 KB
Datasheet
MMBD2000T1_MotorolaInc.pdf
Description
Switching Diode
