MMG1001R2

Gallium Arsenide CATV Integrated Amplifier

MMG1001R2 Features

* Specified for 79 - , 112 - and 132 - Channel Loading

* Excellent Distortion Performance

* Built - in Input Diode Protection

* GaAs FET Transistor Technology

* Unconditionally Stable Under All Load Conditions

* In Tape and Reel. R2 Suffix = 1,500 Unit

MMG1001R2 General Description



* 24 Vdc Supply or 12 Vdc Supply with Bias Change, 40 to 870 MHz, CATV Integrated Forward Amplifier Module Table 1. Maximum Ratings Rating RF Voltage Input (Single Tone) DC Supply Voltage 24 V Application 12 V Application Operating Case Temperature Range Storage Temperature Range Table 2. Th.

MMG1001R2 Datasheet (181.08 KB)

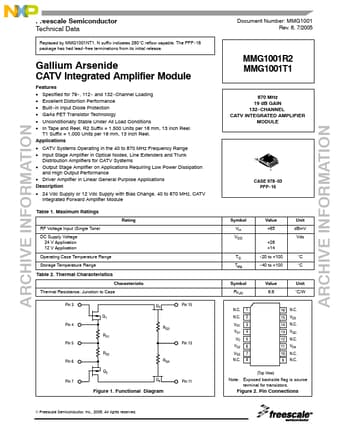

Preview of MMG1001R2 PDF

Datasheet Details

Part number:

MMG1001R2

Manufacturer:

Motorola

File Size:

181.08 KB

Description:

Gallium arsenide catv integrated amplifier.
ARCHIVE INFORMATION ARCHIVE INFORMATION Freescale Semiconductor Technical Data Replaced by MMG1001NT1. N suffix indicates 260°C reflow capable. The .
