MMUN2130LT1 Datasheet - Motorola

MMUN2130LT1 PNP SILICON BIAS RESISTOR TRANSISTOR

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MMUN2111LT1/D Bias Resistor Transistor PNP Silicon Surface Mount Transistor with Monolithic Bias Resistor Network This new series of digital transistors is designed to replace a single device and its external resistor bias network. The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. The BRT eliminates these ind.

MMUN2130LT1 Datasheet (267.27 KB)

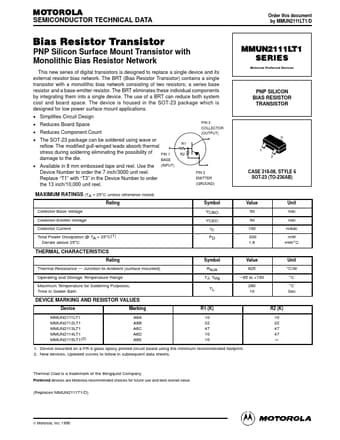

Preview of MMUN2130LT1 PDF

Datasheet Details

Part number:

MMUN2130LT1

Manufacturer:

Motorola

File Size:

267.27 KB

Description:

Pnp silicon bias resistor transistor.
