MPC8248 - MPC8272 PowerQUICC II Family Hardware Specifications

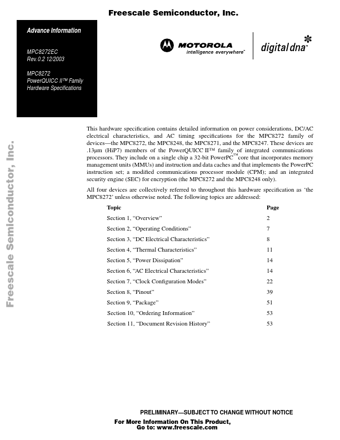

Freescale Semiconductor, Inc. Advance Information MPC8272EC Rev. 0.2 12/2003 MPC8272 PowerQUICC II™ Family Hardware Speciﬁcations Freescale Semiconductor, Inc This hardware speciﬁcation contains detailed information on power considerations, DC/AC electrical characteristics, and AC timing speciﬁcations for the MPC8272 family of devices the MPC8272, the MPC8248, the MPC8271, and the MPC8247. These devices are .13µm (HiP7) members of the PowerQUICC II™ family of integrated communications .

MPC8248 Features

* Dual-issue integer (G2_LE) core

* A core version of the MPC603e microprocessor

* System core microprocessor supporting frequencies of 266-400 MHz

* Separate 16-Kbyte data and instruction caches:

* Four-way set associative

* Physically addressed

* LRU r
