MPQ2483 - QUAD AMPLIFIER TRANSISTOR

Motorola

Datasheet Details

Part number	MPQ2483
Manufacturer	Motorola
File Size	65.94 KB
Description	QUAD AMPLIFIER TRANSISTOR
Datasheet	MPQ2483 Datasheet
Additional preview pages of the MPQ2483 datasheet.

📁 Similar Datasheet

MPQ2483 - 2.5A Programmable Frequency LED Driver (MPS)
MPQ24833-B - LED Driver (MPS)
MPQ24833-BGN-AEC1 - LED Driver (MPS)
MPQ2483A - 2.5A Programmable Frequency LED Driver (MPS)
MPQ2483ADQ - 2.5A Programmable Frequency LED Driver (MPS)
MPQ2483ADS - 2.5A Programmable Frequency LED Driver (MPS)
MPQ2483DQ - 2.5A Programmable Frequency LED Driver (MPS)
MPQ2483DS - 2.5A Programmable Frequency LED Driver (MPS)
MPQ2484 - Multi-Topology LED Controller (MPS)
MPQ2484GF-AEC1 - Multi-Topology LED Controller (MPS)

Other Datasheets by Motorola

MPQ2484 - QUAD AMPLIFIER TRANSISTOR
MPQ2221 - NPN Transistor
MPQ2369 - QUAD SWITCHING TRANSISTOR
MPQ2906 - QUAD GENERAL PURPOSE TRANSISTOR
MPQ2907 - QUAD GENERAL PURPOSE TRANSISTOR
MPQ2907A - QUAD GENERAL PURPOSE TRANSISTOR
MPQ1000 - Quad Amplifier Transistor
MPQ1500 - Quad Transistor

Full PDF Text Transcription

Click to expand full text

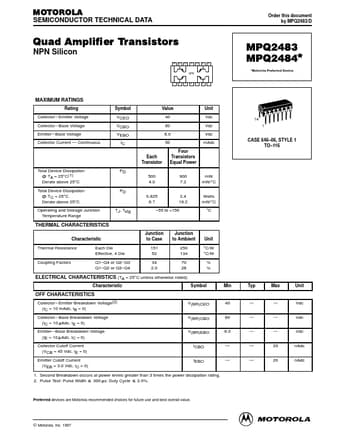

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MPQ2483/D Quad Amplifier Transistors NPN Silicon 14 13 12 11 10 9 8 NPN 1234567 MPQ2483 MPQ2484* *Motorola Preferred Device MAXIMUM RATINGS Rating Symbol Value Unit Collector – Emitter Voltage Collector – Base Voltage Emitter – Base Voltage Collector Current — Continuous VCEO VCBO VEBO IC 40 60 6.0 50 Each Transistor Four Transistors Equal Power Vdc Vdc Vdc mAdc Total Device Dissipation @ TA = 25°C(1) Derate above 25°C PD 500 4.0 900 mW 7.2 mW/°C Total Device Dissipation @ TC = 25°C Derate above 25°C PD 0.825 6.7 2.4 Watts 19.
