MUN5111DW1T1 Datasheet - Motorola

MUN5111DW1T1 - Dual Bias Resistor Transistors

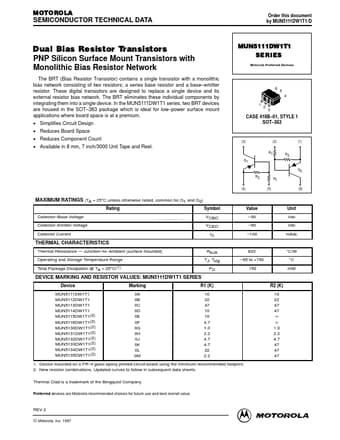

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MUN5111DW1T1/D Dual Bias Resistor Transistors PNP Silicon Surface Mount Transistors with Monolithic Bias Resistor Network The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor. These digital transistors are designed to replace a single device and its external resistor bias network. The BRT eliminates these.

MUN5111DW1T1 Features

* RRENT (mA) 80 Figure 17. VCE(sat) versus IC Figure 18. DC Current Gain 4.5 4 Cob , CAPACITANCE (pF) 3.5 3 2.5 2 1.5 1 0.5 0 0 2 4 6 8 10 15 20 25 30 35 40 VR, REVERSE BIAS VOLTAGE (VOLTS) 45 50 f = 1 MHz lE = 0 V TA = 25°C 100 TA = 75°C IC, COLLECTOR CURRENT (mA) 25°C

* 25°C 10 VO = 5

MUN5111DW1T1_Motorola.pdf

Preview of MUN5111DW1T1 PDF
MUN5111DW1T1 Datasheet Preview Page 2 MUN5111DW1T1 Datasheet Preview Page 3

Datasheet Details

Part number:

MUN5111DW1T1

Manufacturer:

Motorola

File Size:

201.54 KB

Description:

Dual bias resistor transistors.
