MZ2361 Datasheet - Motorola

MZ2361 CONSTANT-VOLTAGE REFERENCE DIODES

.4M.64FRlO/lN8l6 .4Ml.36FRS .4Ml.36FR2 .4M2.04FRS .4M2.04FR2 MZ2360 MZ236l MZ2362 CONSTANT-VOLTAGE REFERENCE DIODES FOR LOW-VOLTAGE APPLICATIONS MAXIMUM RATINGS Rating DC Power Dissipation @ TL ~ 300C ±30C. Lead Length = 3/8" Operating and Storage Junction Temperature Range .. high conductance silicon diodes designed as a stable forward reference source for biasing transistor amplifiers and similar applications. Guaranteed Forward Voltage Range Choice of Package

MZ2361 Datasheet (192.64 KB)

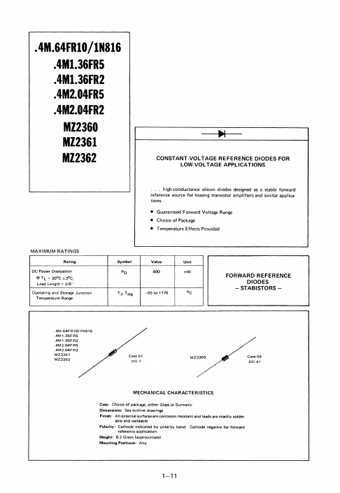

Preview of MZ2361 PDF
MZ2361 Datasheet Preview Page 2 MZ2361 Datasheet Preview Page 3

Datasheet Details

Part number:

MZ2361

Manufacturer:

Motorola

File Size:

192.64 KB

Description:

Constant-voltage reference diodes.
