SBAS40-04LT1 Datasheet - Motorola

SBAS40-04LT1 Common Anode Schottky Barrier Diodes

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Preliminary Information Common Anode Schottky Barrier Diode These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited. Extremely Fast Switching Speed Low Forward Voltage 0.50 Volts (Typ) @ IF = 10 mAdc .

SBAS40-04LT1 Datasheet (28.22 KB)

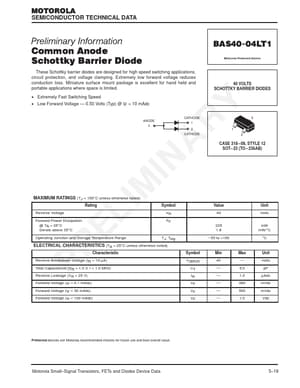

Preview of SBAS40-04LT1 PDF

Datasheet Details

Part number:

SBAS40-04LT1

Manufacturer:

Motorola

File Size:

28.22 KB

Description:

Common anode schottky barrier diodes.
