SN74LS169 BCD DECADE/MODULO 16 BINARY SYNCHRONOUS BI-DIRECTIONAL COUNTERS

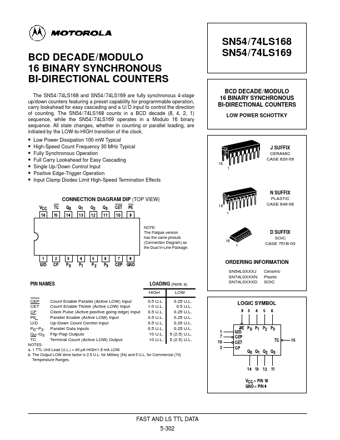

BCD DECADE/MODULO 16 BINARY SYNCHRONOUS BI-DIRECTIONAL COUNTERS The SN54 / 74LS168 and SN54 / 74LS169 are fully synchronous 4-stage up/down counters featuring a preset capability for programmable operation, carry lookahead for easy cascading and a U/ D input to control the direction of counting. The SN54 / 74LS168 counts in a BCD decade (8, 4, 2, 1) sequence, while the SN54 / 74LS169 operates in a Modulo 16 binary sequence. All state changes, whether in counting or parallel loading, are initiate.

SN74LS168D_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: SN74LS169, SN74LS168D. Please refer to the document for exact specifications by model.
