SN74LS42, SN74LS42D Datasheet - Motorola

SN74LS42 ONE-OF-TEN DECODER

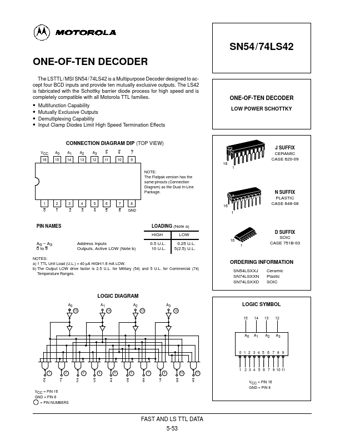

ONE-OF-TEN DECODER The LSTTL / MSI SN54 / 74LS42 is a Multipurpose Decoder designed to accept four BCD inputs and provide ten mutually exclusive outputs. The LS42 is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all Motorola TTL families. Multifunction Capability Mutually Exclusive Outputs Demultiplexing Capability Input Clamp Diodes Limit High Speed Termination Effects CONNECTION DIAGRAM DIP (TOP VIEW.

SN74LS42D_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: SN74LS42, SN74LS42D. Please refer to the document for exact specifications by model.
