TIP42B Datasheet - Motorola

TIP42B, POWER TRANSISTORS

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by TIP41A/D Complementary Silicon Plastic Power Transistors ...designed for use in gen.

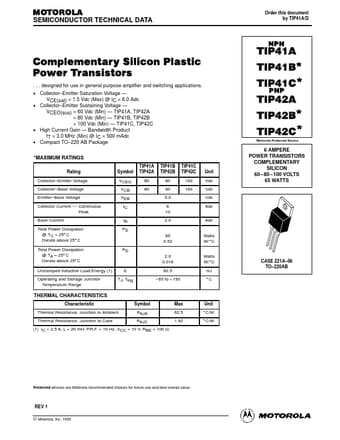

datasheet Preview Page 1 from Datasheet4u.com

TIP42B_MotorolaInc.pdf

TIP42B Datasheet Preview — Preview of TIP42B PDF

Datasheet Details

Part number:

TIP42B

Manufacturer:

Motorola

File Size:

222.21 KB

Description:

POWER TRANSISTORS

Applications

* Collector
* Emitter Saturation Voltage
* VCE(sat) = 1.5 Vdc (Max) @ IC = 6.0 Adc
* Collector
* Emitter Sustaining Voltage
* VCEO(sus) = 60 Vdc (Min)
* TIP41A, TIP42A VCEO(sus) = 80 Vdc (Min)
* TIP41B, TIP42B VCEO(sus) = 100 Vdc (Min)
