SAFSE1G57KA0T05, SAFEB1G57KB0F00 Datasheet - MuRata

SAFSE1G57KA0T05 SAW Filters

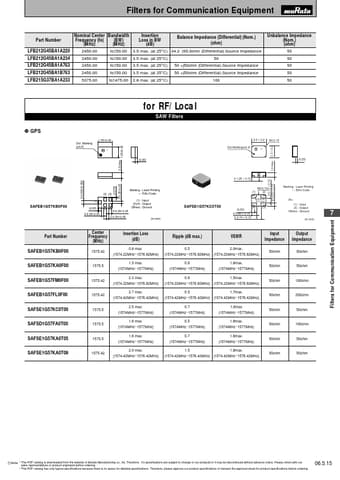

Filters for Communication Equipment Part Number Nominal Center Bandwidth Frequency (fo) (BW) (MHz) (MHz) Insertion Loss in BW (dB) Balance Impedance (Differential) (Nom.) (ohm) LFB212G45BA1A220 2450.00 fo±50.00 3.5 max. (at 25°C) 34.2 -j95.0ohm (Differential) Source Impedance LFB212G45BA1A234 2450.00 fo±50.00 3.5 max. (at 25°C) 50 LFB212G45BA1A763 2450.00 fo±50.00 3.5 max. (at 25°C) 50 +j50ohm (Differential) Source Impedance LFB212G45BA1B763 2450.00 fo±50.00 3.5 max. (at 25°C.

SAFEB1G57KB0F00-MuRata.pdf

SAFSE1G57KA0T05 Datasheet Preview — This datasheet PDF includes multiple part numbers: SAFSE1G57KA0T05, SAFEB1G57KB0F00. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SAFSE1G57KA0T05, SAFEB1G57KB0F00

Manufacturer:

MuRata

File Size:

26.34 KB

Description:

Saw filters.

Note:

This datasheet PDF includes multiple part numbers: SAFSE1G57KA0T05, SAFEB1G57KB0F00.
Please refer to the document for exact specifications by model.
