TMR2104

General-purpose Multi-function TMR Linear Sensor

TMR2104 Features

* Tunneling magnetoresistance (TMR) technology

* High sensitivity

* Large dynamic range

* Low power consumption

* Excellent temperature stability

* RoHS & REACH compliant Applications

TMR2104 General Description

TMR2104 TMR linear sensor adopts a unique push-pull Wheatstone full bridge structure utilizing four TMR sensor elements. This Wheatstone full bridge provides differential voltage output with excellent temperature stability when the applied magnetic field changes parallel to the sensor’s sensitive di.

TMR2104 Datasheet (719.17 KB)

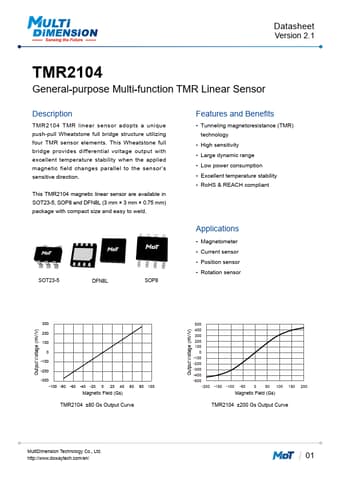

Preview of TMR2104 PDF
