TMR7506-4000C, TMR7506-0500C, Unibody Low Temperature Coefficient Current Sensor

Datasheet Version 1.1 TMR7506-C Unibody Low Temperature Coefficient Current Sensor .
TMR7506-C is an open loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation bet.

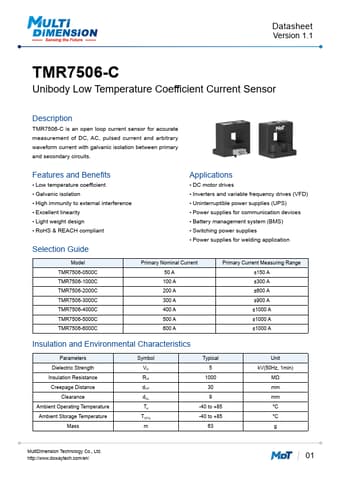

datasheet Preview Page 1 from Datasheet4u.com

TMR7506-0500C-MultiDimension.pdf

TMR7506-4000C Datasheet Preview — This datasheet PDF includes multiple part numbers: TMR7506-4000C, TMR7506-0500C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TMR7506-4000C, TMR7506-0500C

Manufacturer:

MultiDimension

File Size:

1.05 MB

Description:

Unibody Low Temperature Coefficient Current Sensor

Note:

This datasheet PDF includes multiple part numbers: TMR7506-4000C, TMR7506-0500C.
Please refer to the document for exact specifications by model.

Features

* Low temperature coefficient
* Galvanic isolation
* High immunity to external interference
* Excellent linearity
* Light weight design

Applications

* DC motor drives
* Inverters and variable frequency drives (VFD)
* Uninterruptible power supplies (UPS)
* Power supplies for communication devices
* Battery management system (BMS)
* Switching power supplies
* Power supplies for welding applic
