BAS70 - Surface Mount Barrier Diode

Datasheet Summary

Features

Low turn-on voltage.
Fast switching.
Ultra-small surface mount package.
PN Junction guard ring for transient and ESD protection.
Ultra small surface mount package.

Multicomp

📥 Download Datasheet

Datasheet Details

Part number	BAS70
Manufacturer	Multicomp
File Size	563.42 KB
Description	Surface Mount Barrier Diode
Datasheet	BAS70 Datasheet
Additional preview pages of the BAS70 datasheet.

📁 Similar Datasheet

BAS70 - Low series inductance and resistance Schottky diodes (STMicroelectronics)
BAS70 - General-purpose Schottky diodes (NXP)
BAS70 - Surface Mount Schottky Barrier Diodes (Vishay Telefunken)
BAS70 - Silicon Schottky Diode (Infineon)
BAS70 - SOT-23 SURFACE MOUNT SCHOTTKY DIODE (Rectron)
BAS70 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (WON-TOP)
BAS70 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (Frontier Electronics)
BAS70 - Schottky Rectifier Diodes (MIC)
BAS70 - SMD Small Signal Schottky Diodes (Diotec)
BAS70 - Surface mount schottky barrier diode (GME)

Other Datasheets by Multicomp

BAS70W - Surface Mount Barrier Diode
BAS16 - High Speed Switching Diodes
BAS40 - Surface Mount Barrier Diode
BAS40W - Surface Mount Barrier Diodes
BAS40W-04 - Surface Mount Barrier Diodes
BAS40W-05 - Surface Mount Barrier Diodes
BAS40W-06 - Surface Mount Barrier Diodes

Full PDF Text Transcription

Click to expand full text

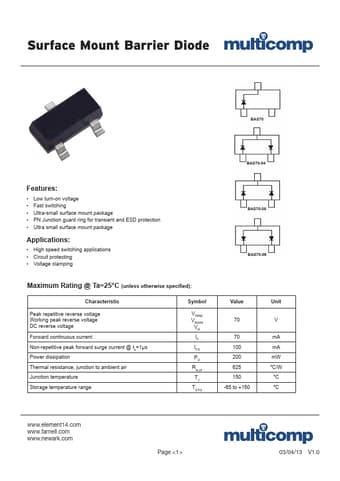

Surface Mount Barrier Diode BAS70 BAS70-04 Features: • Low turn-on voltage • Fast switching • Ultra-small surface mount package • PN Junction guard ring for transient and ESD protection • Ultra small surface mount package Applications: • High speed switching applications • Circuit protecting • Voltage clamping BAS70-05 BAS70-06 Maximum Rating @ Ta=25°C (unless otherwise specified): Characteristic Peak repetitive reverse voltage Working peak reverse voltage DC reverse voltage Forward continuous current Non-repetitive peak forward surge current @ tp=1μs Power dissipation Thermal resistance, junction to ambient air Junction temperature Storage temperature range Symbol VRRM VRWM VR IF IFS PD RthJA TJ TSTG Value 70 70 100 200 625 150 -65 to +150 Unit V mA mA mW °C/W °C °C www.
