HRS1H-S-DC12V - Signal Relays

Download the HRS1H-S-DC12V datasheet PDF. This datasheet also covers the HRS1H-S-DC5V variant, as both devices belong to the same signal relays family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Microminiature relay Dimension : 15.6 × 10.6 × 11.8 (mm).
  • High sensitivity.
  • Maximum switching capacity 3A.
  • Contact Form: 1 form C. Part Number Explanation: HRS1 H -S- DC5V Model Coil Sensitivity Enclosure Coil Voltage Coil Sensitivity : H - High sensitive (200mW) Enclosure : S-Plastic Sealed Type. Coil Voltage : DC5V, DC12V and DC24V. Remark: Contact rating : 1A, 3A. Specifications Contact Data Contact Material Contact Rating Contact Resi.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HRS1H-S-DC5V-Multicomp.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HRS1H-S-DC12V
Manufacturer Multicomp
File Size 107.34 KB
Description Signal Relays
Datasheet download datasheet HRS1H-S-DC12V Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HRS1H Relay ETC
HRS1H Relay HKE
HRS105N15H N-Channel Trench MOSFET SemiHow
HRS120N10K N-Channel MOSFET SemiHow
HRS130N06K N-Channel MOSFET SemiHow

Other Datasheets by Multicomp

Part Number Description
HRS1H-S-DC24V Signal Relays
HRS1H-S-DC5V Signal Relays
HRS1K Signal Relays
HRS1KH-S-DC12V Signal Relays
HRS1KH-S-DC24V Signal Relays

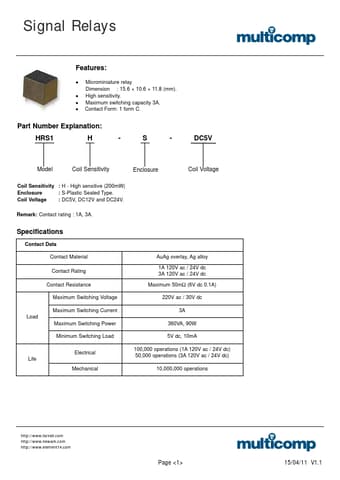

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Signal Relays Features: • Microminiature relay Dimension : 15.6 × 10.6 × 11.8 (mm). • High sensitivity. • Maximum switching capacity 3A. • Contact Form: 1 form C. Part Number Explanation: HRS1 H -S- DC5V Model Coil Sensitivity Enclosure Coil Voltage Coil Sensitivity : H - High sensitive (200mW) Enclosure : S-Plastic Sealed Type. Coil Voltage : DC5V, DC12V and DC24V. Remark: Contact rating : 1A, 3A. Specifications Contact Data Contact Material Contact Rating Contact Resistance Maximum Switching Voltage Load Maximum Switching Current Maximum Switching Power Minimum Switching Load Electrical Life Mechanical AuAg overlay, Ag alloy 1A 120V ac / 24V dc 3A 120V ac / 24V dc Maximum 50mΩ (6V dc 0.
