Description
Diode, High Speed, Mini-Melf
Part Number LL914B

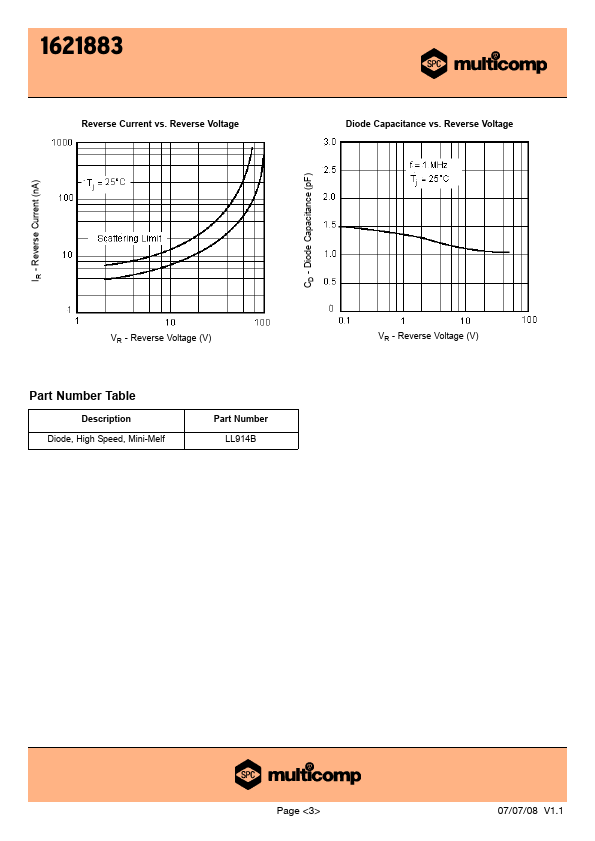

VR - Reverse Voltage (V)
Page
07/07/08 V1.1
1621883
Notes:
International Sales Offices:
AUSTRALIA
Farnell Tel No: ++61 1300 361 005 Fax No: ++61 1300 361 225
AUSTRIA
Farnell Tel No: ++ 43 662 2180 680 Fax No: ++ 43 662 2180 670
BELGIUM
Farnell Tel No: ++ 32 3 475 2810 Fax No: ++ 32 3 227 3648
BRAZIL
Farnell-Newark Tel No: ++ 55 11 4066 9400 Fax No: ++ 55 11 4066 9410
CHINA
Farnell-Newark T

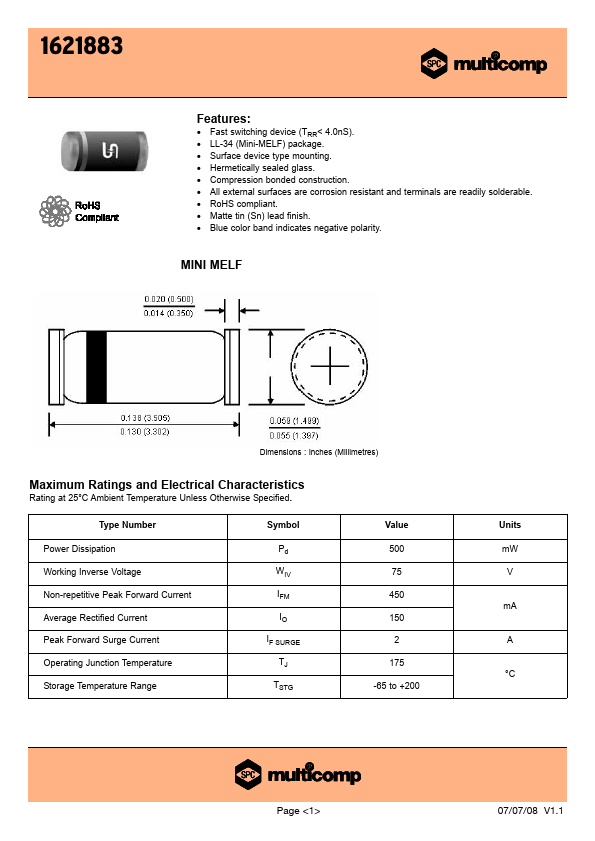

Features
- Fast switching device (TRR< 4.0nS).
- LL-34 (Mini-MELF) package.
- Surface device type mounting.
- Hermetically sealed glass.
- Compression bonded construction.
- All external surfaces are corrosion resistant and terminals are readily solderable.
- RoHS compliant.
- Matte tin (Sn) lead finish.
- Blue color band indicates negative polarity. MINI MELF
Dimensions : Inches (Millimetres)
Maximum Ratings and Electrical Charac.
