MC0063W0603191R, MC00603 - Thick Film Chip Resistor

Multicomp

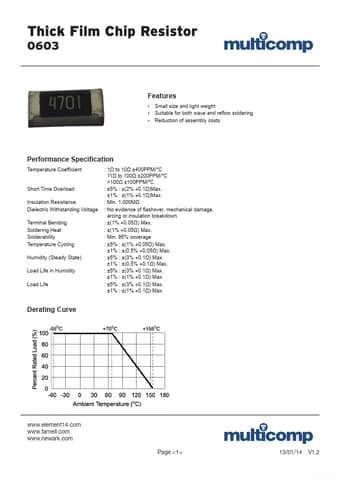

MC0063W0603191R Datasheet Preview — This datasheet PDF includes multiple part numbers: MC0063W0603191R, MC00603. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MC0063W0603191R, MC00603
Manufacturer	Multicomp
File Size	877.28 KB
Description	Thick Film Chip Resistor
Datasheet	MC00603-Multicomp.pdf
Note	This datasheet PDF includes multiple part numbers: MC0063W0603191R, MC00603. Please refer to the document for exact specifications by model.

MC0063W0603191R Product details

Description

Thick Film Resistor, 0Ω, 0.063W Thick Film Resistor, 0Ω, 0.063W Thick Film Resistor, 0Ω, 0.063W Thick Film Resistor, 1Ω, 0.063W, 1% Thick Film Resistor, 1.1Ω, 0.063W, 1% Thick Film Resistor, 1.15Ω, 0.063W, 1% Thick Film Resistor, 1.2Ω, 0.063W, 1% Thick Film Resistor, 1.21Ω, 0.063W, 1% Thick Film Resistor, 1.27Ω, 0.063W, 1% Thick Film Resistor, 1.3Ω, 0.063W, 1% Thick Film Resistor, 1.33Ω, 0.063W, 1% Thick Film Resistor, 1.4Ω, 0.063W, 1% Thick Film Resistor, 1.47Ω, 0.063W, 1% Thick Film Resistor,

Features

Small size and light weight.
Suitable for both wave and reflow soldering.
Reduction of assembly costs Performance Specification Temperature Coefficient : 1Ω to 10Ω ±400PPM/°C 11Ω to 100Ω ±200PPM/°C >100Ω ±100PPM/°C Short Time Overload : ±5% : ±(2% +0.1Ω)Max. ±1% : ±(1% +0.1Ω)Max. Insulation Resistance : Min. 1,000MΩ Dielectric Withstanding Voltage : No evidence of flashover, mechanical damage, arcing or insulation breakdown. Terminal Bending : ±(1% +0.05Ω.
