LQG11N1R0K00_MurataElectronics.pdf
Datasheet Details
Part number:
LQG11NR10K00, LQG11N1R0K00
Manufacturer:
Murata Electronics
File Size:
102.51 KB
Description:
(lqg11 / lqg21n) chip inductors.
Note:
This datasheet PDF includes multiple part numbers: LQG11NR10K00, LQG11N1R0K00.
Please refer to the document for exact specifications by model.

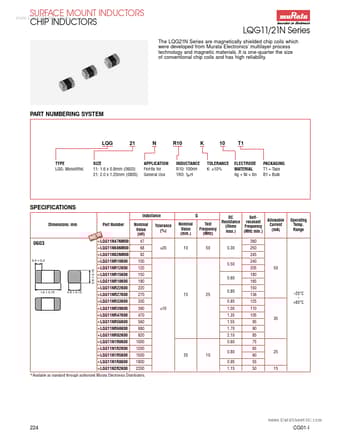

LQG11NR10K00, LQG11N1R0K00, (LQG11 / LQG21N) Chip Inductors
www.DataSheet4U.com SURFACE MOUNT INDUCTORS CHIP INDUCTORS LQG11/21N Series The LQG21N Series are magnetically shielded chip coils which were developed from Murata Electronics’ multilayer process technology and magnetic materials.
It is one-quarter the size of conventional chip coils and has high reliability.
PART NUMBERING SYSTEM LQG 21 N R10 K 10 T1 TYPE LQG: Monolithic SIZE 11: 1.6 x 0.8mm (0603) 21: 2.0 x 1.25mm (0805) APPLICATION Ferrite for General Use INDUCTANCE R10: 100nH 1R
