H8D3190 Datasheet (Murata Manufacturing) - (H8D3190 / H8D3206) AC-DC Converter Module

H8D3190, (H8D3190 / H8D3206) AC-DC Converter Module

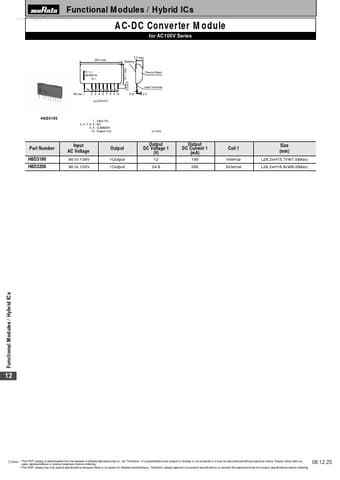

Functional Modules / Hybrid ICs www.DataSheet4U.com AC-DC Converter Module for AC100V Series 7.0 max.

28.2 max.

Marking 15.7 max.

D∗∗∗∗ MURATA D∗∗ Phenol Resin 3.5±0.5 2a Pin No.

1 a a a a a a a 3 4 5 6 7 8 9 10 a=2.54±0.3 Lead Terminal 0.27 0.5 H8D3190 1 : Input (Vi) 3, 4, 7, 8, 9 : NC 5, 6 : COMMON 10 : Output (Vo) (in mm) Part Number H8D3190 H8D3206 Input AC Voltage 80 to 138V 80 to 120V Output 1Output 1Output Output DC Voltage 1 (V) 12 24.6 Output DC Current 1 (mA) 100 200 Co
