IRA-E700, IRA-E420 Pyroelectric Infrared Sensors

Murata Manufacturing

Description

Please read CAUTION and Notice in this catalog for safety.This catalog has only typical specifications.Therefore you are requested to approve our pr.

📥 Download Datasheet

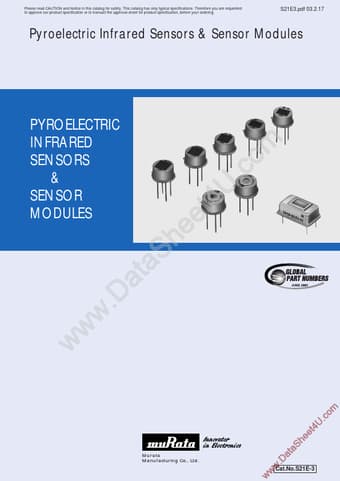

IRA-E700 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRA-E700, IRA-E420. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IRA-E700, IRA-E420
Manufacturer: Murata Manufacturing
File Size: 365.83 KB
Datasheet: IRA-E420_MurataManufacturing.pdf
Description: Pyroelectric Infrared Sensors
Note: This datasheet PDF includes multiple part numbers: IRA-E700, IRA-E420.
Please refer to the document for exact specifications by model.

Features

* 1. High sensitivity and excellent S/N ratio 2. High stability to the temperature change 3. Slight movement can be detectable. 4. High immunity to the external noise (Vibration, RFI etc. ) 5. Custom design is available. 6. Higher in cost-performance ! Dimensions & Circuit Diagrams 4.7±0.1 3.7±0.1 9.2

Applications

* 1. Security 2. Lighting appliances 3. Household or other appliances 11.0±2 ∗Specified on the bottom of stem ∗ !Rating (25˚C) Part Number Responsivity (500K, 1Hz, 1Hz) Field of View Optical Filter Electrode Supply Voltage Operating Temperature Storage Temperature IRA-E700ST0 IRA-E710ST0 d s g 4.3m
