SARCC423M22BX_0 - Saw Resonator

Product Overview

Murata Manufacturing

Part number	SARCC423M22BX_0
Manufacturer	Murata Manufacturing
File Size	329.70 KB
Description	Saw Resonator
Datasheet	SARCC423M22BX_0 Datasheet
Note	This datasheet PDF includes multiple part numbers: SARCC423M22BX_0, SARCC433M87BX. Please refer to the document for exact specifications by model.

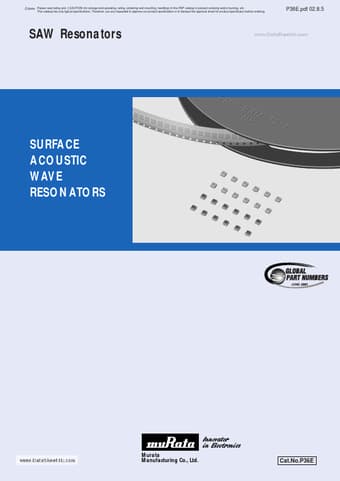

Additional preview pages of the SARCC423M22BX_0 datasheet.

1. High Oscillation Frequency Stability Both initial tolerance and temperature coefficient of oscillating frequency of SAW Resonator are between quartz bulk resonator's and LC's / RC's. Temperature coefficient of oscillating frequency for quartz crystal : 10.
-6/degree C, LC : 10.
-3-10.
-4/dgree C, while SAW Resonator : 5x10.
-6/dgree C. (The number following.
means multiplier. ) 2. Adjustment Free As SAW Resonator utilizes mechanical vibration of piezoe.
