UEI30 - 30W Isolated Wide-Range DC/DC Converters

Features

avoid both converter and external circuit problems. These include input undervoltage lockout and overtemperature shutdown. The outputs current limit using the “hiccup” autorestart technique and the outputs may be short-circuited indeﬁnitely. Additional features include output overvoltage and reverse conduction elimination. The synchronous rectiﬁer forward topology offers high efﬁciency for minimal heat buildup and “no fan” operation. The open frame design is also available under special quantity.

Murata Manufacturing

Datasheet Details

Part number	UEI30
Manufacturer	Murata Manufacturing
File Size	324.67 KB
Description	30W Isolated Wide-Range DC/DC Converters
Datasheet	UEI30 Datasheet
Additional preview pages of the UEI30 datasheet.

📁 Similar Datasheet

UEI25-033-D48 - Single Output Isolated 25-Watt DC/DC Converters (Murata)
UEI25-050-D48 - Single Output Isolated 25-Watt DC/DC Converters (Murata)
UEI25-120-D48 - Single Output Isolated 25-Watt DC/DC Converters (Murata)

Other Datasheets by Murata Manufacturing

UEI - 50-60W Isolated Wide-Range DC/DC Converters
UEI-12 - 50-60W Isolated Wide-Range DC/DC Converters
UEI-15 - 50-60W Isolated Wide-Range DC/DC Converters
UEI-3.3 - 50-60W Isolated Wide-Range DC/DC Converters
UEI-5 - 50-60W Isolated Wide-Range DC/DC Converters
UEI15 - Isolated Wide Input Range 15-Watt DC/DC Converters
UEI25-120 - Low-profile Open-frame DC-DC Converters

Full PDF Text Transcription

Click to expand full text

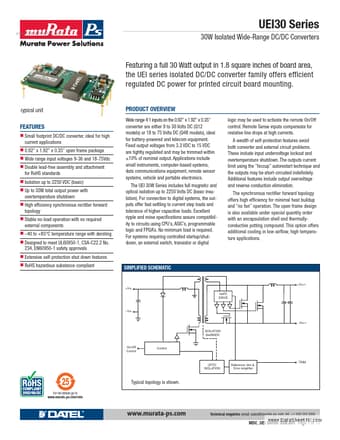

www.DataSheet4U.com www.murata-ps.com www.murata-ps.com UEI30 Series 30W Isolated Wide-Range DC/DC Converters Featuring a full 30 Watt output in 1.8 square inches of board area, the UEI series isolated DC/DC converter family offers efficient regulated DC power for printed circuit board mounting. PRODUCT OVERVIEW Wide range 4:1 inputs on the 0.92" x 1.92" x 0.35" converter are either 9 to 36 Volts DC (Q12 models) or 18 to 75 Volts DC (Q48 models), ideal for battery-powered and telecom equipment. Fixed output voltages from 3.3 VDC to 15 VDC are tightly regulated and may be trimmed within ±10% of nominal output. Applications include small instruments, computer-based systems, data communications equipment, remote sensor systems, vehicle and portable electronics.
