78SR-5, 78SR-3.3 Synchronous Switching Regulators

Murata

Description

www.murata-ps.com 78SR 2 Amp Series 2 Amp, 3.3V & 5V Output, High Efﬁciency, Synchronous Switching Regulators .

📥 Download Datasheet

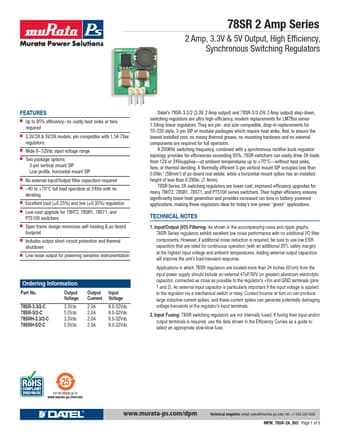

78SR-5 Datasheet Preview — This datasheet PDF includes multiple part numbers: 78SR-5, 78SR-3.3. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 78SR-5, 78SR-3.3
Manufacturer: Murata
File Size: 396.49 KB
Datasheet: 78SR-3.3-Murata.pdf
Description: Synchronous Switching Regulators
Note: This datasheet PDF includes multiple part numbers: 78SR-5, 78SR-3.3.
Please refer to the document for exact specifications by model.

Features

* Up to 95% efﬁciency
* no costly heat sinks or fans required
* 3.3V/2A & 5V/2A models; pin compatible with 1.5A 78xx regulators
* Wide 8
* 32Vdc input voltage range
* Two package options: 3-pin vertical mount SIP Low proﬁle, horizontal mount SIP
* No external Input

Applications

* making these regulators ideal for today’s low power “green” applications. TECHNICAL NOTES 1. Input/Output (I/O) Filtering: As shown in the accompanying noise and ripple graphs, 78SR Series regulators exhibit excellent low noise performance with no additional I/O ﬁlter components. However, if additi
