DLW5ATH500MQ2K

The DLW5ATH500MQ2K is Wire Wound Chip Common Mode Choke Coil designed by Murata.

Product Overview

Murata

Part number	DLW5ATH500MQ2K, DLW5ATH500MQ2L
Manufacturer	Murata
File Size	419.02 KB
Description	Wire Wound Chip Common Mode Choke Coil
Datasheet	DLW5ATH500MQ2L-Murata.pdf
Note	This datasheet PDF includes multiple part numbers: DLW5ATH500MQ2K, DLW5ATH500MQ2L. Please refer to the document for exact specifications by model.

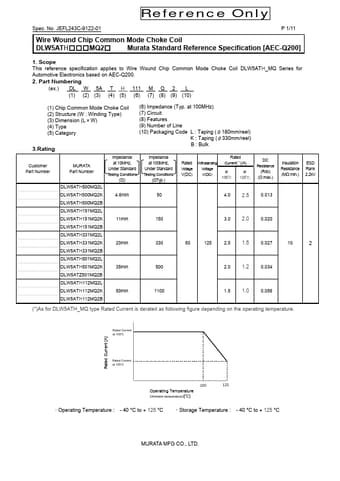

Additional preview pages of the DLW5ATH500MQ2K datasheet.

(9) Number of Line (10) Packaging Code L : Taping (φ180mm/reel) K : Taping (φ330mm/reel) B : Bulk Customer Part Number MURATA Part Number DLW5ATH500MQ2L Impedance at 10MHz, Under Standard Testing Conditions (Ω) Impedance at 100MHz, Under Standard Testing Conditions (ΩTyp. ) Rated Voltage V(DC) Withstanding Voltage V(DC) Rated Current(.
)(A) at 105℃ at 125℃ DLW5ATH500MQ2K 4.6min 50 4.0 2.5 DLW5.
