DLW5BSN302SQ2, DLW5AH DLW5AH/5BS Series Chip Common Mode Choke Coils

Murata

Description

CAUTION catalog to prevent smoking and/or burning, Pleaseread readrating ratingand and! ! CAUTION(for (forstorage, storage,operating, operating,rating.

📥 Download Datasheet

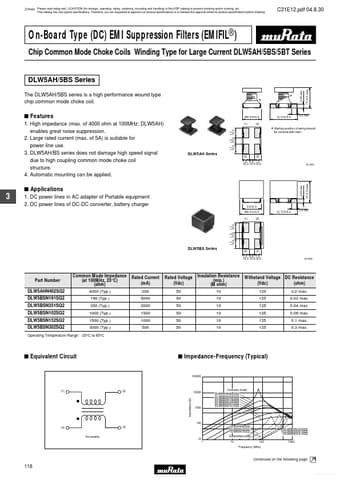

DLW5BSN302SQ2 Datasheet Preview — This datasheet PDF includes multiple part numbers: DLW5BSN302SQ2, DLW5AH. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DLW5BSN302SQ2, DLW5AH
Manufacturer: Murata
File Size: 78.69 KB
Datasheet: DLW5AH-Murata.pdf
Description: DLW5AH/5BS Series Chip Common Mode Choke Coils
Note: This datasheet PDF includes multiple part numbers: DLW5BSN302SQ2, DLW5AH.
Please refer to the document for exact specifications by model.

Features

* 1. High impedance (max. of 4000 ohm at 100MHz: DLW5AH) enables great noise suppression. 2. Large rated current (max. of 5A) is suitable for power line use. 3. DLW5AH/BS series does not damage high speed signal due to high coupling common mode choke coil structure. 4. Automatic mounting can be applie

Applications

* 3 1. DC power lines in AC adapter of Portable equipment 2. DC power lines of DC-DC converter, battery charger 3.6±0.3 (W) 5.0±0.3 (1) 1.7 1.3 1.7 ±0.3 ±0.3 ±0.3 (2) (L) 5.0±0.3 0.5 min. DLW5BS Series (4) (3) in mm 1.3 0.9 1.3 ±0.3 ±0.3 ±0.3 Part Number DLW5AHN402SQ2 DLW5BSN191SQ2 DLW5BSN351S
