DLW5BTM142SQ2L, DLW5BTM142SQ2B Datasheet - Murata

DLW5BTM142SQ2L choke coil

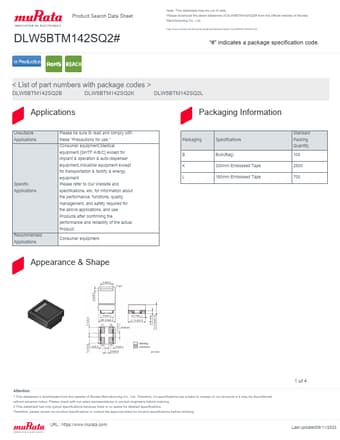

Product Search Data Sheet DLW5BTM142SQ2# Note: This datasheet may be out of date. Please download the latest datasheet of DLW5BTM142SQ2# from the official website of Murata Manufacturing Co., Ltd. http://www.murata.com/en/products/productdetail?partno=DLW5BTM142SQ2%23 “#” indicates a package specification code. < List of part numbers with package codes > DLW5BTM142SQ2B DLW5BTM142SQ2K DLW5BTM142SQ2L Applications Packaging Information Unsuitable Applications Specific Applications Recommend.

DLW5BTM142SQ2L Features

* Low profile (h=2.5mm) chip common mode choke coil. Suitable for noise suppression at DC power lines. Features 1. Low profile (h=2.5mm) 2. Small size (5.0x5.0mm) and high rated current (1.5 to 6A) 3. High common mode Impedance (max. 1400 ohm, at 100MHz) Applications Noise suppression for power line 1

DLW5BTM142SQ2B-Murata.pdf

DLW5BTM142SQ2L Datasheet Preview — This datasheet PDF includes multiple part numbers: DLW5BTM142SQ2L, DLW5BTM142SQ2B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DLW5BTM142SQ2L, DLW5BTM142SQ2B

Manufacturer:

Murata

File Size:

389.11 KB

Description:

Choke coil.

Note:

This datasheet PDF includes multiple part numbers: DLW5BTM142SQ2L, DLW5BTM142SQ2B.
Please refer to the document for exact specifications by model.
