DLW5BTN142SQ2

DLW5AH/5BS Series Chip Common Mode Choke Coils

DLW5BTN142SQ2 Features

* 1. High impedance (max. of 4000 ohm at 100MHz: DLW5AH) enables great noise suppression. 2. Large rated current (max. of 5A) is suitable for power line use. 3. DLW5AH/BS series does not damage high speed signal due to high coupling common mode choke coil structure. 4. Automatic mounting can be applie

DLW5BTN142SQ2 Datasheet (78.69 KB)

Preview of DLW5BTN142SQ2 PDF

Datasheet Details

Part number:

DLW5BTN142SQ2

Manufacturer:

Murata

File Size:

78.69 KB

Description:

Dlw5ah/5bs series chip common mode choke coils.
CAUTION catalog to prevent smoking and/or burning, Pleaseread readrating ratingand and! ! CAUTION(for (forstorage, storage,operating, operating,rating.

📁 Related Datasheet

PST8319 - DLW5BT Series Common Mode Choke Coil (Murata)
MITSUMI • • • Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior no.

DLW5BTN142SQ2 - Chip Common Mode Choke Coil (Murata)
Note • Please read rating and CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or b.

PST8315 - DLW5BT Series Common Mode Choke Coil (Murata)
MITSUMI • • • Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior no.

DLW5BTN101SQ2 - DLW5AH/5BS Series Chip Common Mode Choke Coils (Murata)
CAUTION catalog to prevent smoking and/or burning, Pleaseread readrating ratingand and CAUTION(for (forstorage, storage,operating, operating,rating.

DLW5BTN101SQ2 - Chip Common Mode Choke Coil (Murata)
Note • Please read rating and CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or b.

PST8318 - DLW5BT Series Common Mode Choke Coil (Murata)
MITSUMI • • • Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior no.

DLW5BTN102SQ2 - DLW5AH/5BS Series Chip Common Mode Choke Coils (Murata)
CAUTION catalog to prevent smoking and/or burning, Pleaseread readrating ratingand and CAUTION(for (forstorage, storage,operating, operating,rating.

DLW5BTN102SQ2 - Chip Common Mode Choke Coil (Murata)
Note • Please read rating and CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or b.

TAGS

DLW5BTN142SQ2 DLW5AH 5BS Series Chip Common Mode Choke Coils Murata

Image Gallery

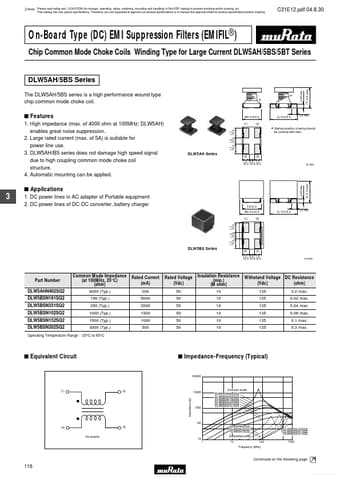

DLW5BTN142SQ2 Datasheet Preview Page 2 DLW5BTN142SQ2 Datasheet Preview Page 3
