DLW5BTZ142TQ2B Wire Wound Chip Common Mode Choke Coil

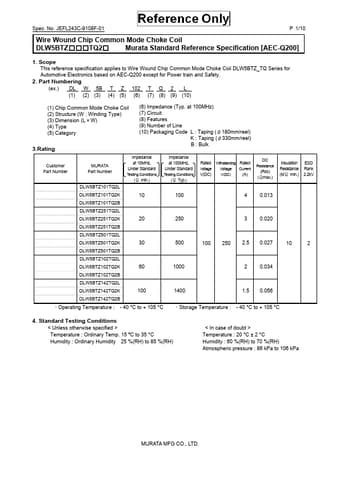

Spec. No. JEFL243C-9108F-01 P 1/10 Wire Wound Chip Common Mode Choke Coil DLW5BTZ TQ2 Murata Standard Reference Specification [AEC-Q200] 1. Scope This reference specification applies to Wire Wound Chip Common Mode Choke Coil DLW5BTZ_TQ Series for Automotive Electronics based on AEC-Q200 except for Power train and Safety. 2. Part Numbering (ex.) DL W 5B T Z 102 T Q 2 L (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (1) Chip Common Mode Choke Coil (2) Structure (W .

DLW5BTZ142TQ2B Features

* (9) Number of Line (10) Packaging Code L : Taping (φ180mm/reel) K : Taping (φ330mm/reel) B : Bulk Customer Part Number MURATA Part Number DLW5BTZ101TQ2L Impedance at 10MHz, Under Standard Testing Conditions (Ω min.) Impedance at 100MHz, Under Standard Testing Conditions (Ω Typ.) Rated Withstand

DLW5BTZ101TQ2L-Murata.pdf

This datasheet PDF includes multiple part numbers: DLW5BTZ142TQ2B, DLW5BTZ101TQ2L. Please refer to the document for exact specifications by model.
DLW5BTZ142TQ2B Datasheet Preview Page 2 DLW5BTZ142TQ2B Datasheet Preview Page 3

Datasheet Details

Part number:

DLW5BTZ142TQ2B, DLW5BTZ101TQ2L

Manufacturer:

Murata

File Size:

470.50 KB

Description:

Wire wound chip common mode choke coil.

Note:

This datasheet PDF includes multiple part numbers: DLW5BTZ142TQ2B, DLW5BTZ101TQ2L.
Please refer to the document for exact specifications by model.
