GRM0335C1E101JD01D Datasheet - Murata

GRM0335C1E101JD01D Capacitor

Data Sheet Capacitors > Monolithic Ceramic Capacitors Monolithic Ceramic Capacitors GRM0335C1E101JD01p (0201, C0G, 100pF, 25Vdc) p: packaging code RoHS regulation conformity parts ege T L I Dimensions Length L Width W Thickness T Electrode e Electrode Gap g (min.) 0.6mm±0.03mm 0.3mm±0.03mm 0.3mm±0.03mm 0.1 to 0.2mm 0.2mm I Rated Value Murata PN Code Spec Temperature Char. 5C C0G (EIA), 0±30ppm/°C Capacitance 101 100pF Capacitance Tol. J ±5% Rated Voltage 1E 25Vdc W (in mm.

GRM0335C1E101JD01D-Murata.pdf

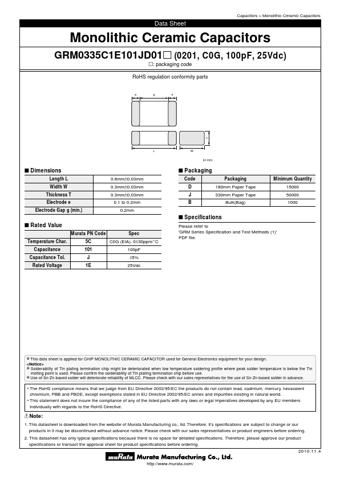

GRM0335C1E101JD01D Datasheet Preview — Preview of GRM0335C1E101JD01D PDF

Datasheet Details

Part number:

GRM0335C1E101JD01D

Manufacturer:

Murata

File Size:

16.87 KB

Description:

Capacitor.
