GRM21BR71H105K Datasheet - Murata

GRM21BR71H105K Monolithic Ceramic Capacitors

Chip Monolithic Ceramic Capacitor Electrical Characteristics Data 0805 X7R 1μF 50V Murata Global Part No: GRM21BR71H105K 1. Dimension 3. Impedance/ESR - Frequency Equipment: 8753D(16197A) T L L 2.0+/-0.1 W 1.25+/-0.1 1000 Impedance W ( mm) T 1.25+/-0.1 Impedance/ESR (ohm) 100 10 1 0.1 0.01 0.001 0.1 1 10 ESR 2. Cap,DF,IR Capacitance,DF 1kHz , 1Vrms IR Item Cap.[μF] DF IR[M ohm] 50V , 120s Spec 0.9 to 1.1 0.025max 500min 100 1000 Frequency (MHz) 4. Capacitance - Temperature Character.

GRM21BR71H105K-Murata.pdf

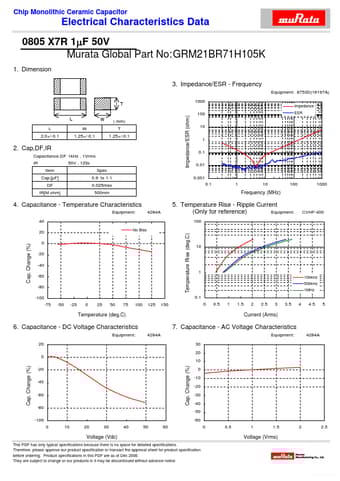

Preview of GRM21BR71H105K PDF

Datasheet Details

Part number:

GRM21BR71H105K

Manufacturer:

Murata

File Size:

74.61 KB

Description:

Monolithic ceramic capacitors.
