GRM316R61A225KA01D Datasheet - Murata

GRM316R61A225KA01D Capacitor

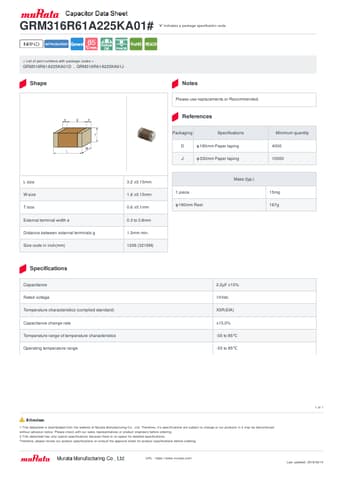

GRM316R61A225KA01# “#” indicates a package specification code. < List of part numbers with package codes > GRM316R61A225KA01D , GRM316R61A225KA01J Shape L size W size T size External terminal width e Distance between external terminals g Size code in inch(mm) 3.2 ±0.15mm 1.6 ±0.15mm 0.6 ±0.1mm 0.3 to 0.8mm 1.5mm min. 1206 (3216M) Specifications Capacitance Rated voltage Temperature characteristics (complied standard) Capacitance change rate Temperature range of temperature characteristics Op.

GRM316R61A225KA01D-Murata.pdf

GRM316R61A225KA01D Datasheet Preview — Preview of GRM316R61A225KA01D PDF

Datasheet Details

Part number:

GRM316R61A225KA01D

Manufacturer:

Murata

File Size:

43.43 KB

Description:

Capacitor.
