GRM31CR71C106KAC7L Datasheet - Murata

GRM31CR71C106KAC7L Capacitor

GRM31CR71C106KAC7# “#” indicates a package specification code. < List of part numbers with package codes > GRM31CR71C106KAC7L , GRM31CR71C106KAC7K Shape L size W size T size External terminal width e Distance between external terminals g Size code in inch(mm) 3.2 ±0.2mm 1.6 ±0.2mm 1.6 ±0.2mm 0.3 to 0.8mm 1.5mm min. 1206 (3216M) Specifications Capacitance Rated voltage Temperature characteristics (complied standard) Capacitance change rate Temperature range of temperature characteristics Oper.

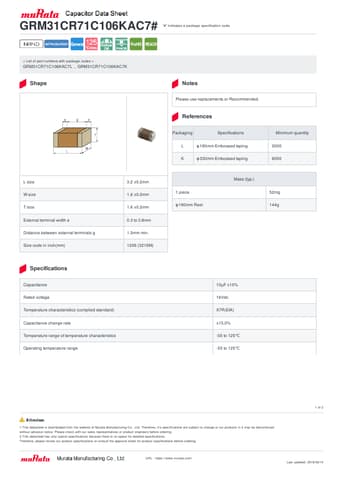

GRM31CR71C106KAC7L Datasheet (136.41 KB)
