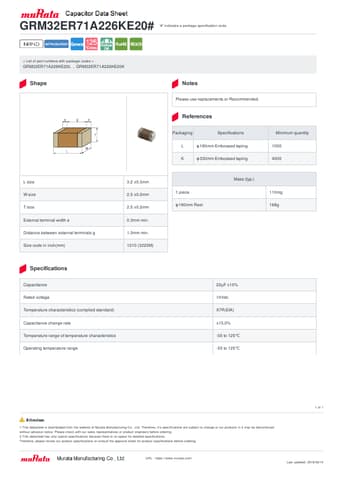

GRM32ER71A226KE20L Datasheet (Murata)

GRM32ER71A226KE20L, Capacitor

GRM32ER71A226KE20# “#” indicates a package specification code.

< List of part numbers with package codes > GRM32ER71A226KE20L , GRM32ER71A226KE20K Shape L size W size T size External terminal width e Distance between external terminals g Size code in inch(mm) 3.2 ±0.3mm 2.5 ±0.2mm 2.5 ±0.2mm 0.3mm min.

1.0mm min.

1210 (3225M) Specifications Capacitance Rated voltage Temperature characteristics (complied standard) Capacitance change rate Temperature range of temperature characteristics Operat
