GRM43DR72E474KW01# “#” indicates a package specification code.
< List of part numbers with package codes >
GRM43DR72E474KW01L , GRM43DR72E474KW01K
Shape
L size W size T size External terminal width e Distance between external terminals g Size code in inch(mm)
4.5 ±0.4mm 3.2 ±0.3mm 2.0 +0.0/-0.3mm 0.3mm min. 2.2mm min. 1812 (4532M)
References
Packaging
Specifications
L φ180mm Embossed taping
K φ330mm Embossed taping
Minimum quantity 1000 4000
1 piece φ180mm Reel
Mass (typ.)
150mg 209g
Specifications
Capacitance Rated voltage Temperature characteristics (complied standard) Capacitance change rate Temperature range of temperature characteristics Operating temperature range
0.47µF ±10% 250Vdc X7R(EIA) ±15.0% -55 to 125℃ -55 to 125℃
1 of 2
1.

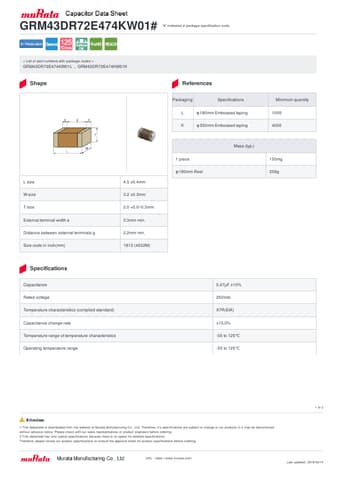

GRM43DR72E474KW01K Datasheet
