LFD181G57DP6B913 - Chip Multilayer Diplexers

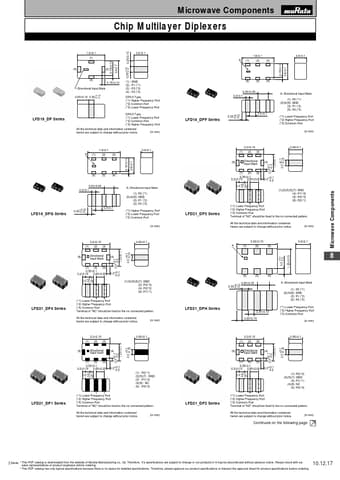

Microwave Components Chip Multilayer Diplexers 0.25±0.15 1.6±0.1 (1) 0.15±0.10 0.8 -0.1 +0.2 0.6±0.1 A (1) 1.6±0.1 (2) (3) 0.15±0.10 0.8±0.1 0.6±0.1 (4) (2) (3) Directional Input Mark 0.65±0.15 0.30-0.15 +0.10 0.30-0.15 +0.10 0.15±0.10 (1) : GND (2) : P1 ( 1) (3) : P3 ( 2) (4) : P2 ( 3) DP3,5 Type ( 1) Higher Frequency Port ( 2) Common Port ( 3) Lower Frequency Port DP4,6 Type ( 1) Lower Frequency Port ( 2) Common Port ( 3) Higher Frequency Port (6
