LME0509SC, LME0505DC Datasheet - Murata

LME0509SC Isolated 250mW Single Output DC/DC Converters

contained herein do not imply the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without notice. © 2013 Murata Power Solutions, Inc. KDC_LMEC.E05 Page 4 of 4 .

LME0509SC Features

* RoHS compliant

* Single output rail

* 1kVDC isolation

* High efficiency for low power applications

* SIP & DIP package styles

* Power density 0.36W/cm3

* UL 94V-0 package material

* Footprint from 0.69cm2

* 5V & 12V input

LME0505DC-Murata.pdf

This datasheet PDF includes multiple part numbers: LME0509SC, LME0505DC. Please refer to the document for exact specifications by model.

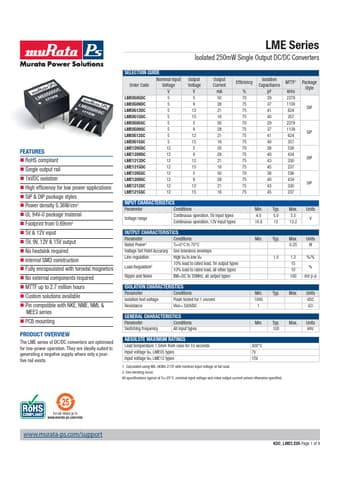

LME0509SC Datasheet Preview Page 2 LME0509SC Datasheet Preview Page 3

Datasheet Details

Part number:

LME0509SC, LME0505DC

Manufacturer:

Murata

File Size:

102.21 KB

Description:

Isolated 250mw single output dc/dc converters.

Note:

This datasheet PDF includes multiple part numbers: LME0509SC, LME0505DC.
Please refer to the document for exact specifications by model.
