LQH32PB101MN0L Datasheet - Murata

LQH32PB101MN0L Inductor

LQH32PB101MN0# “#” indicates a package specification code. < List of part numbers with package codes > LQH32PB101MN0L , LQH32PB101MN0K , LQH32PB101MN0B Shape L size W size T size Size code in inch (mm) 3.2 ±0.3mm 2.5 ±0.2mm 1.55 ±0.15mm 1210 (3225) Notes When rated current is applied to the products, inductance will be within ±30% of nominal inductance value. When rated current is applied to the products, the temperature rise caused by self-generated heat shall be limited to 40°C max. Keep .

LQH32PB101MN0L Datasheet (122.49 KB)

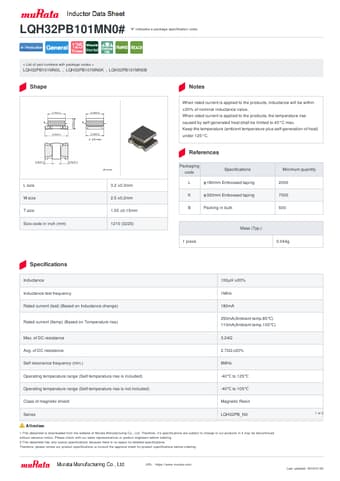

Preview of LQH32PB101MN0L PDF
LQH32PB101MN0L Datasheet Preview Page 2

Datasheet Details

Part number:

LQH32PB101MN0L

Manufacturer:

Murata

File Size:

122.49 KB

Description:

Inductor.
